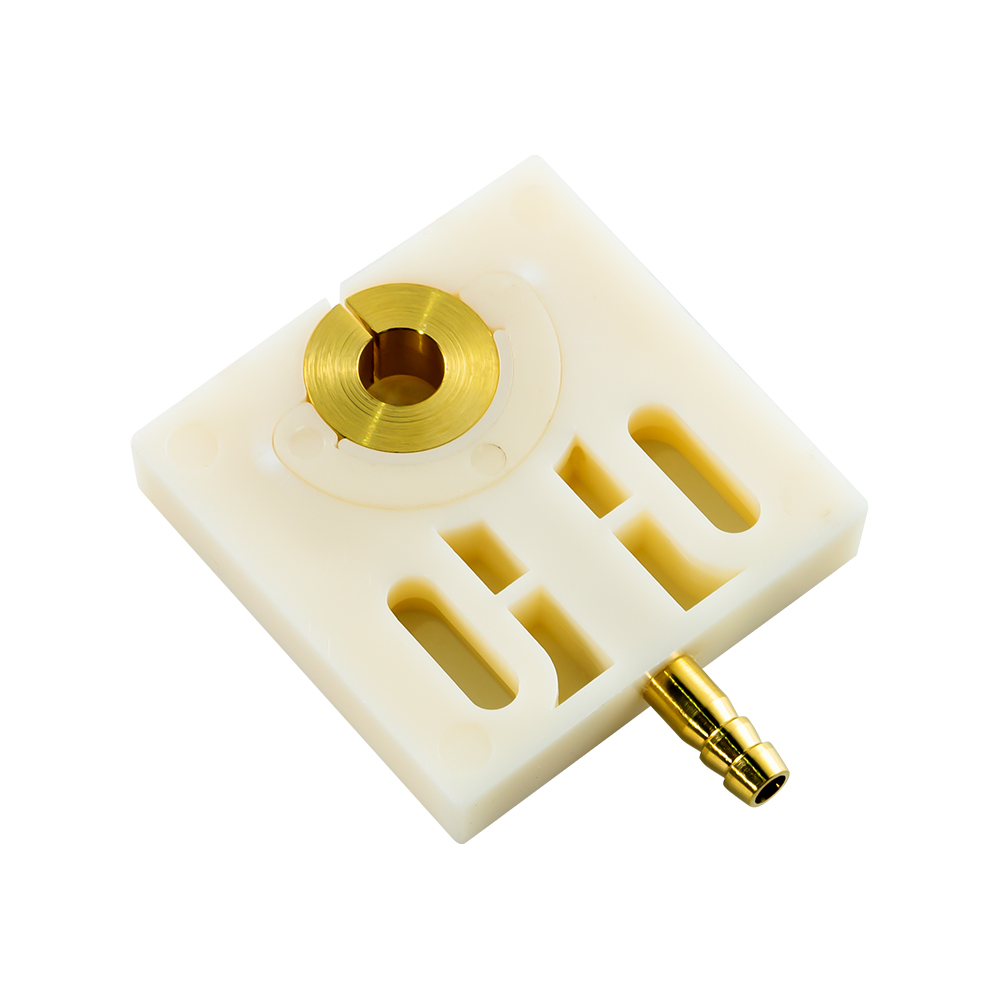

Water Jet Panel Board for High Speed Wire Cutting Machine
The water jet panel board is fitted at the end of the upper and lower wire arms of high-speed wire EDM machines, directing dielectric fluid evenly across the cutting gap between the molybdenum wire and workpiece throughout the machining process. Consistent, uniform fluid coverage is essential for stable chip flushing, effective cooling, and reliable discharge conditions — all of which directly affect surface finish quality and wire breakage rate.
Baoshijie high-speed water jet panel boards are precision injection-moulded from high-quality engineering plastic, selected for its electrical insulation, corrosion resistance in dielectric fluid, dimensional stability, and compatibility with molybdenum wire. The moulded water distribution geometry ensures uniform flow across the cutting zone without dead spots or turbulence. The smooth, edge-free surface ensures no damage to the electrode wire during operation.
Dimensionally matched to standard Baoshijie high-speed machine arm fittings and compatible with most equivalent third-party machines. The economical unit cost makes regular replacement a practical part of planned machine maintenance. Suitable for use across the full DK77 series range.
